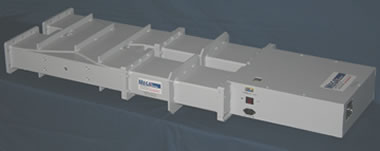

Waveguide Phase Shifters. Mega Industries produces Waveguide Phase Shifters in sizes ranging from WR-28 to WR-2300. For extremely high power applications, waveguide phase shifters of the short slot hybrid design are utilized. Non-contacting, double bucket shorting assemblies, mounted on Teflon runners, are utilized for long term reliability and durability. With an insertion loss characteristic of less than 0.05 db., maximum power transfer is assured for both manual and motorized units. Please see the Quote Request form below to explore commonly used materials, paint and flange configurations. Contact Mega Sales if you do not see the Waveguide Phase Shifter configuration your high-power microwave application requires.
Mega Industries produces a comprehensive line of high power, low frequency rigid and flexible waveguide products and accessories in sizes ranging from WR28 through WR2300. Larger sizes are offered through WR5900 upon special request.
Mega Industries waveguide phase shifters are typically manufactured from 6061-T6 aluminum alloy, however, sizes WR090 through WR650 are available in either copper or aluminum alloys. Waveguide flanges and gaskets are provided in accordance with EIA and Military Specifications.
Mega Industries phase shifters are manufactured to precise tolerances calculated to provide optimum VSWR and maximum power handling capabilities.
In addition to waveguide phase shifters, Mega offers a complete line of components to complete or refurbish your systems. These include miter bends, sweep bends, quadrature hybrids, magic tees, folded tees, flexible waveguide sweeps, series and shunt tees, transformers, transitions, gas barriers, couplers, terminations, attenuators, flexible waveguide and tuners.
A trusted name in high power microwave technology since 1989, Mega Industries is a world leader in the manufacture of microwave transmission equipment. Please contact Mega Industries about your specific waveguide phase shifter needs.
