Mega produces a comprehensive line of waveguide products and accessories. Our high power, low frequency assemblies and components range in sizes from WR28 through WR2300. We typically cover a frequency range of 0.32 GHz to 40 GHz. We offer larger sizes through WR5900 upon special request.
View our new 3D CAD Catalog for standard waveguide components on the Microwave Techniques website.
-
Accessories - Attenuators
- Calibration Kits
- Circulators
- Couplers
- Directional Couplers
- Dummy Loads
- Flanges
- Folded Magic Tees
- Gain Horns
- Gas Barriers
- Harmonic Filters
- High Power Loads
- Impedance Matchers
- Magic Tees
- MegaSeals
- Miter Bends
- Phase Shifters
- Rotary Joints
- Short Slot Hybrids
- Shunt and Series Tees
- Straight Sections and Tube
-
Sweep Bends - Switches
- Test Terminations and Short Circuits
- Transformers
- Transitions to Coaxial
- Tuners
- Twists
Rigid Waveguide Manufacturing
We typically manufacture our waveguide assemblies and components from 6061-T6 aluminum alloy. However, WR90 to WR650 are available in copper or aluminum alloy.
Mega Industries manufactures to precise tolerances. We calculate to provide optimum VSWR and maximum power handling.
In addition to straight section waveguide, Mega offers a complete line of rigid components to complete your system.
Custom RF Solutions
Our years of innovation set us apart from other manufacturers. We take concepts from sketch to delivered solutions. Our specialty is high-power applications. We transcend the industry standard by using intricate shapes, uncommon materials and non-standard waveguide sizes. Our commitment to custom solutions include water-cooled coax, ultra high vacuum directional couplers and Gigawatt power levels.

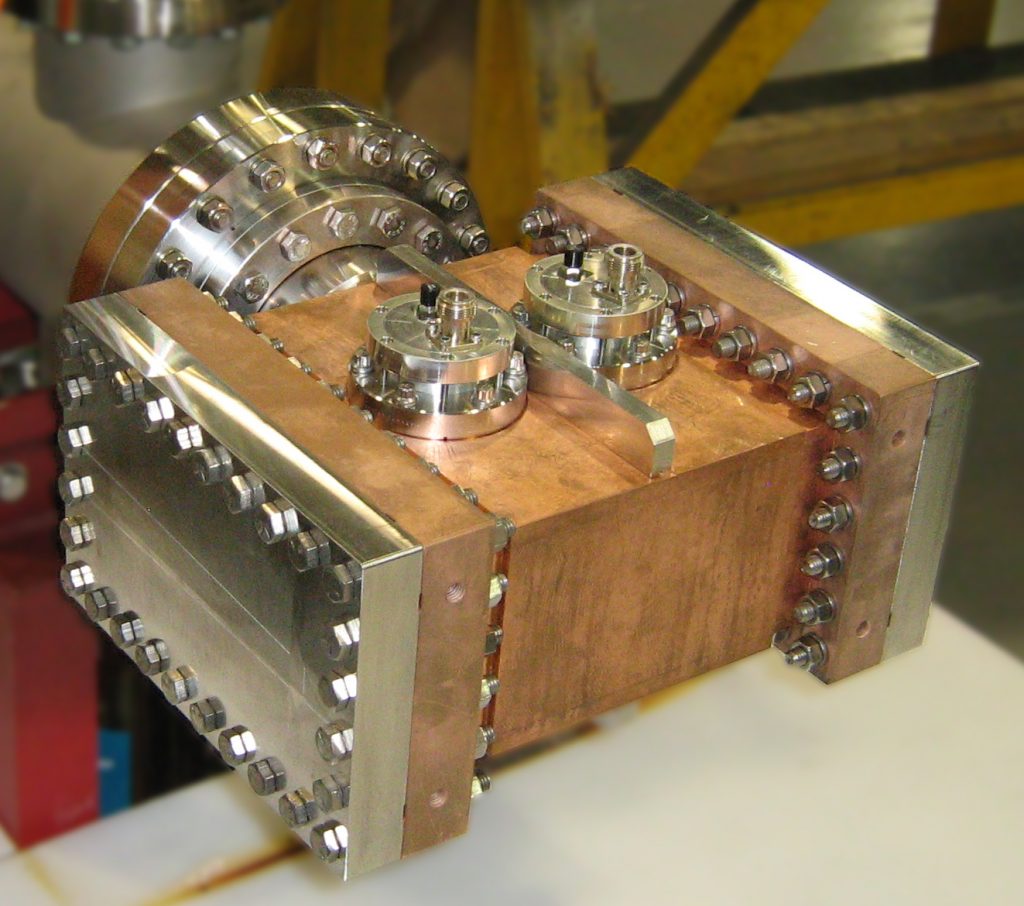

Ultra High Vacuum WR650 Directional Coupler
Mega manufactured this WR650 Directional Coupler for a cutting edge application. In this particular case, High Vacuum Levels (10 -10 Torr) and Low Leak Rates required a custom solution. We developed a solution and delivered a device that allowed scientists to continue their research.
