Mega’s coaxial gas stops or windows are fabricated to stringent electrical and mechanical specifications to provide a low VSWR, low insertion loss, compensated gas stop. Teflon dielectric and 1/8” NPT-F fittings are supplied in our standard units, however, different fittings; ceramic or other dielectric materials are available of special service applications.
Please contact us if you do not see the Coaxial Gas Stop configuration your application requires.
Request a Quote

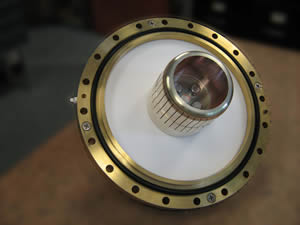

12″ Coax Gas Barrier Specifications:
Frequency: 35 ~ 65 MHz Minimum
Impedance: 50 Ohms
Power: 3 MW minimum (CW)
VSWR: Less than 1.1:1
Insertion Loss: Less than 0.06dB
DC Hi Pot Test: >45kV
Barrier: Quartz (GE 124)
Mega offers an extensive line of Coax Components that can be used at high
power levels in hostile high radiation environments. Even in these challenging
environments, low loss designs are made possible through the use of Quartz
and Alumina. Every component is built and tested to withstand the rigors of
scientific and commercial uses and deliver decades of service.
All Mega Industries coaxial gas stops are manufactured to exacting electrical and mechanical tolerances to provide maximum stability and minimum VSWR.
A trusted name in high power microwave technology since 1989, Mega Industries is a world leader in manufacture of microwave transmission equipment. Please contact Mega Industries for your specific coaxial gas barrier needs.
